Beer Brewing Equipment Micro Brewery 100l,200l,300l 500l,1000l Per Batch

FOB Reference Price:Get Latest Price
$27,000.00 - $29,000.00 / Sets | 1 Set/Sets 10bbl 15bbl 20bbl beer brewing and manufacturing (Min. Order)
Report Suspicious Activity
Quick Details
Fermenting Equipment
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Model Number:
custom made
Processing Types:
Carbonated Beverage
According to needs
Depends on Volume
Product Name:
Beer Brewing Equipment Micro Brewery 300l 500l,1000l Per Batch
Insulation layer:
PU or rockwool
Washing system:
CIP cleaning, 360° spray ball
Heating method:
Steam heating/Direct fire/Electric
Control system:
Instrument or PLC control system
Temperature measurement way:
Fermenter cone:
Material of PHE:
Cooling jacket of fermente:
Dimple or Channel jacket
After-sales Service Provided:
Engineers available to service machinery overseas
3 Years
Supply Ability
Supply Ability:
30 Set/Sets per Month 10bbl 15bbl 20bbl beer brewing and manufacturing
Packaging & Delivery
Packaging Details
1. Ship stainless steel mash tun by LCL or FCL
2. Packed false bottom mash tun with plastic film or bubble film
3. Fix with iron frame for big tank, lay down in the container
4. Fumigation free wooden case for small capacity by LCL


 Beer Brewing Equipment Micro Brewery 100l,200l,300l 500l,1000l Per Batch




Beer brewing equipment micro brewery 100l,200l,300l 500l,1000l volume can be custom made, if need, can provide turnkey project service for you.

Technical Details
  Beer Brewing Equipment(For reference)




2 Vessels


2 Vessels


2 Vessels


2 Vessels


2 Vessels


2 Vessels
Brewhouse 100L 200L 300L 500L 1000L 2000L
Hot liquid tank 200L 400L 600L 1000L 2000L 4000L
Fermentation tank 100L*6 200L*6 300L*6 500L*6 1000L*6 2000L*6
BBT (optional) 100L*6 200L*6 300L*6 500L*6 1000L*6 2000L*6
CIP 50L  50L   50L  100L  100L  100L
Glycol tank  300L   500L  800L  1500L  3000L  6000L
Chiller  3HP    3HP  3HP  3HP*2   5HP*2  10HP*2
Controller Cabinet  PID Instrument Panel/PLC Siemens Screen
RemarkAbove are our standard configuration, based on 2 Vessels systems, one brew to fill one fermentation tanks, looking for other configurations,such as 3Vessels, 4Vessels etc.





Brewery Description

1.Malt milling system

Material: SUS304/carbon steel

Application: Used for grain mill

Details:Equipped with good motor, belt pulley, belt, hopper. Gap between 2 rollers is adjustable, you can adjust it according to your needs. With low noise.

Patented new design roller, use excellent steel axel head and new roller material, mill malt more uniformly and more efficiently.

2.Mashing system

Material:SUS304/carbon steel

Application:Use for malt mashing, wort filter, wort boiling, and whirlpool.

Details: It is include mash tun, lauter tun boiling, whirlpool, wort grant,  heat exchanger with oxygenation device, wort pump and etc.

During the mashing system, the lauter tank and boiling kettle are vital important for the whole beer manufacturing equipment. It effect the filter of wort.

So introduce the lauter tank in details:a.It have some advantage to make the beer brewing equipment operate much convenient and efficient:

Sieve plate, laser cutting T-wires, plate gap:0.7-0.8mm; Material is SUS 304

CIP spraying ball, 360° coverage. Top manhole: φ400mm, round stainless steel manhole, equipped with sight glass, used for observe the mashing status.


3.Fermentation system

 Top manhole or side manhole. Top manhole have better cooling effect of the tanks; Side manhole is much easily to let person enter.

The location of mahole is design according to your needs. Glycol jacket: dimple or glycol jacket.

Cooling media: glycol water or alcohol water. Design pressure 0.3MPa,Working pressure 0.2Mpa

Stringent jacket leakage test by pressured gas

Cone bottom:60°cone bottom or according to your needs.

Dry hops port on the top of tanks with butterfly valve and hopper(This can remove if the hops enter from other parts, let it make better beer.

Full sanitary sample valve, no seal ring, no pollution.

The numbers of fermentation tank is according to the beer brewing equipment daily output beer.

4. CIP system:

It include Disinfection tank, Alkali tank,CIP pump. It used to clean mash system, fermentation system and other parts. The motor of the pump is high quality type, it is imported from Switzerland.

This system is used to clean the whole beer brewing equipment.

5.Glycol cooling system:

It used to cooling the fermenter and water to keep the beer fresh. This part play important roles in the whole set beer brewing equipment.

Our chiller use high quality Australia Coolsoon brand. The important advantage of the chiller we provide for the clients as follows:

a. safety refinements: Compressor overheating protection, Overcurrent protection, High and low pressure protection, Over-temperature protection,

Flow protection,Phase sequence/phase protection, Exhaust overheating protection.b.Word famous chiller, quality is excellent. If there is something wrong in future,

it is easy to find spare part.


This high qulaity chiller will make sure the cooling system in the beer brewing equipment works very well, durable, high efficiency.


6.Control system:

Application:Used for controlling mashing sytem,all fermenters/serving tanks,CIP,and cooling system.

Type:It can be make PLC or Instrument type.

Assembling style: floor type/wall hanging

Electric parts: world wide brand CE certificated

It have VFD to control the racking arm and wort pump

All the fermenters /Ice water tank’s temperature will be controlled on the cabinet automatically.

All the six systems are the necessary parts to cooperate together make the beer brewing equipment let the brewers operate easily and keep long tem using.

Also have some auxiliary systems: Such as keg filler and keg washer, bottiling line, water treatment sytem and other system, these parts are choosen by the brewers.



Customer Site

This set beer manufacturing brewing equipment is make for a Europe client.

This brewing equipment can be used in hotel, restaurant, bar to make fresh beer.

It can be filled in the keg, bottle to sell to other places and distributors.

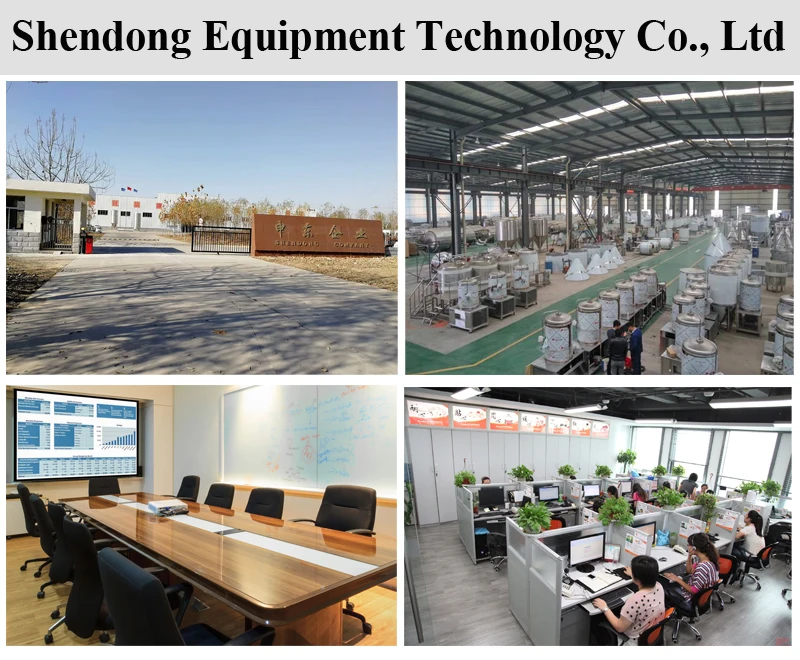

Company Information

 Shandong Shendong Equipment Technology Co., Ltd is one of the most professional beer brewing equipments manufacturer and supplier In the Spring City-Jinan, We have the most advanced technology and world class at Shendong.
Shendong is integrating with R&D, processing and engineering installation which is specialized in manufacturing beer manufacturing equipment and facilities, not only suitable for micro and middle breweries, but also becomes the best choice for beer brewing in top hotels, pubs, cabarets, home and other amusement places.The characteristics of this equipment are fabrication at scene, maintain the freshness and nutrition maximum.



We have exported lots of beer brewery equipment to European and other countries, All the equipment produced by our company are adopted in SUS 304/316, and have passed CE, ISO, and PED test. We can show you our qualification and certification, to ensure provide the best quality equipment for you.


Packaging & Shipping

Trade Term: EXW, FOB, CIF, CFR
Supplying Ability: 35 working days after deposit
1. Packages suitable for delivery, basically by plastic film, wooden case or steel frame if necessary
2. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity
3. Customers' requirements of the packages are available, Please tell in advance.


1. Packages suitable for delivery, basically by plastic film, wooden case or steel frame if necessary.
2. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
3. By sea or railway or land, it depend on customer's request.
4. Customers' requirements of the packages are available, Please tell in advance.
