10bbl micro craft beer brewing equipment for sale

FOB Reference Price:Get Latest Price
$55,000.00 - $58,000.00 / Sets | 1 Set/Sets 10bbl micro craft beer brewing equipment for sale (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SDET
Model Number:
SDET-10bbl
Processing Types:
Alcohol
Voltage:
3phase/380(220V)
Power(W):
0-80KW
Dimension(L*W*H):
Based on volume
Weight:
based on your equipment's volume and quantity
Certification:
CE ISO
Name:
10bbl micro craft beer brewing equipment for sale
Mash system:
two vessel / three vessel / four vessel
Heating method:
electric /steam /direct fire heating
Inside:
Mirror polishing
Material:
SUS304/316 food grade or copper
Tank thickness:
3mm for Inner-Jacket/2mm for External-Jacket
External surface treatment:
cold-rolled plates grinded to SB
Insulation layer:
PU or rockwool
Washing system:
CIP cleaning, 360° spray washing
fermenter conical:
60 degree
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 Years for main product
Supply Ability
Supply Ability:
20 Set/Sets per Month 10bbl micro craft beer brewing equipment for sale
Packaging & Delivery
Packaging Details
1. Packaging Details: micro beer brewing equipment by independent containers or by bulk carriers PVC film, or ply wooden case
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, complete beer brewing equipment will be well fixed to the containers.
4. Delivery Detail: 30-45 days, depend on the condition for 10bbl micro craft beer brewing equipment for sale
Port
Qingdao port
Lead Time :
45 days after the order

10bbl micro craft beer brewing equipment for sale

Product Description
Why is our micro 10bbl beer brewing equipment hot sale?

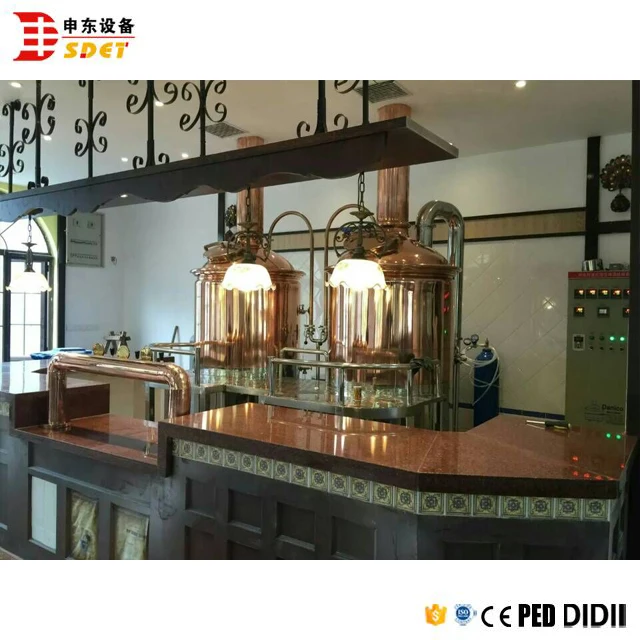

10bbl beer brewing equipment is a good choice for ginshop, barbecue, and restaurant who brew beer for customer at scene. So the micro craft beer brewing equipment can better come true dream for brew master.

• Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste.

• Excellent micro beer brewing equipment production process can promise to give you a high quality beer brewing equipment. 10bbl beer brewing equipment may be faced with polished brass, copper besides stainless steel.

• Also, the micro craft beer brewing equipment is placed behind a glass partition that allows visitors to observe the process of making beer.

•This is an excellent design solution and a powerful marketing tool.

•The luxury and sanitary process comforts the consumers and give them impressed experience.

Micro Beer Brewery Equipment Introduction
Micro 10bbl Beer Brewery Equipment Detail
Daily output100L200L300L500L1000L2000L
unit typeSDET-100SDET-200SDET-300SDET-500SDET-1000SDET-2000
floorspace15square25square35square45square80square120square
power12KW15KW20KW35KW35/15KW65/15KW
Beer production period8-12 days8-12 days8-12 days8-12 days8-12 days8-12 days

Technical Detail

Mashing system

Our micro 10bbl beer brewing equipment separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 2000L, use electric or steam or direct fire heating and Semi-automatic control and easy to operate.
Brewhouse consists of Mash Tun, Lauter tank, Boiling Kettle, Whirlpool kettle, Hot water tank and so on. The main micro beer brewing equipment adopted international quality standards of sanitary 304 stainless steel, to deal with the tank by plasma cutting, pure Ar-shielding welding, mechanized automatic polishing machine.

Fermentation tanks

Fermentation systems consists of Fermentation Tank and Bright Beer Tank. Fermentation Tank structure and design differs depending on fermentation process. The normal Fermentation Tank structure is dish head in the above of tank  and cone in the bottom of tank, the tank is equipped with cooling installation, there is a cooling jacket on cone of tank, columnar part has two or three cooling jackets. This not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, also help to precipitation and storage the yeast.

Cooling System

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigerators with fryonto supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials are included

Controlling system

Electrical controlling cabinet with temperature, on off controlling for brewhouse

Electrical controlling cabinet with temperature, on off controlling for cooling parts

Temperature controller, thermocouple, solenoid valves etc are included

PLC with touch screen panel for special request

Our Other Product Maybe You Interested


If you are interested in our micro 10bbl beer brewing equipment, click the photos as below, and you can send us the inquiry.


Packaging & Shipping

1. Packaging Details: micro craft beer brewing equipment by independent containers or by bulk carriers PVC film, or ply wooden case

2. All accessories and spare parts will be packaged with separate box.

3. After loaded into containers, complete 10bbl beer brewing equipment will be well fixed to the containers.

4. Delivery Detail: 30-45 days, depend on the condition.

Company Information

Shandong Shendong Equipment Technology Co., Ltd. is a professional manufacturer of micro craft beer brewing equipment. Our team has 10 years’ experience in installing our brewery systems in brewpub, bar, restaurant, microbrewery, regional brewery etc. We have exported to USA, Canada, Korea, Japan, Russia, Australia, England, Italy, Spain, Romania, Belgium, Norway, Poland, Sweden, Serbia, Singapore, South Africa, South America etc.


Shendong Company supply all-round service including layout design, customized micro beer brewing equipment design, transportation, installation and training. All details are taken the humanity and brewmasters’ intention into consideration.
Reliable quality is guaranteed by professional technical support, advanced processing equipment, strict quality control and complete personnel training.

Insisting the idea that micro craft beer brewing equipment should be in a popular style, we keep our system affordable, trying to help more brew masters to approach their dream.

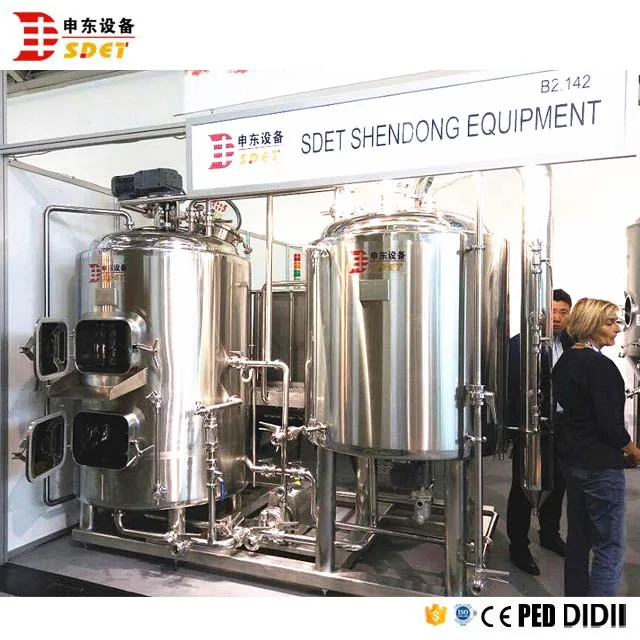

SDET Company Brewery Equipment Exhibition
Shandong Shendong Equipment Technology Co., Ltd attends many micro craft beer brewing equipment exhibitions, in April of 2016, we attended the professional micro craft beer brewing equipment fair that is Craft Brewer Conference (CBC) in Philadelphia of USA; we attend the Shanghai International Brew & Beverage Manufacturing Technology and Equipment Exhibition (CBBE) in October of 2016; we attend the exhibition of China Brew China Beverage in Beijing during 2016 year. We will attend the micro craft beer brewing equipment fair of International Beverage and micro beer brewing equipment technological exhibitions in Munich of Germany during the September of 2017. This is one of the biggest exhibition of beer brewing equipment in the world. We will show our craft 10bbl beer brewing equipment in this meaningful exhibition. Meantime, we will learn from the advanced Germany technology to do our 10bbl beer brewing equipment better and better, search some high good supplier of pumps, motor and other auxiliary equipment.

Trade Shows

Each year we have many clients come to visit out workshop and our 10bbl beer brewing equipment. Everyone is satisfied with our products and our beer.

Each year we installed many micro craft beer brewing equipment for clients all over the world. You can go to visit them for comments and inspect the quality

FAQ

1. Do you offer turnkey/complete micro craft beer brewing equipment?
    Yes, we offer all equipments for a complete beer brewery. You need not to buy any other equipments. Only prepare water, malts, hops and yeast to make beer.

2. What stainless steel you use to manufacture brewhouse tanks micro brewery system?
    We all use SUS304/SUS316 stainless steel from TISCO, which is national company, quality is excellent.

3. What certificate do you have?
    We have ISO9001, CE and PED certificate. SGS and other certificate can be made based on client’s requirement.

4. What is the welding and polishing quality?
    All welding is TIG (argon arc welding), double side welding for all tanks.
    All inner polishing is mirror polish. Looks like mirror.

5. What spare parts you use?
    All parts is famous brand and excellent quality, such as, motor is Siemens, VFD is danfoss, chiller is coolsoon, all pumps have CE certificate, all electric parts have CE certificate.

6. How to install the brewhouse tanks micro brewery system?
    We can send engineer to install it, you can also install it by yourself if need.

7. How long is your warranty for brewhouse tanks micro brewery system?
    5 years. We will offer free service and free spare parts if any problems happens naturally within warranty.
