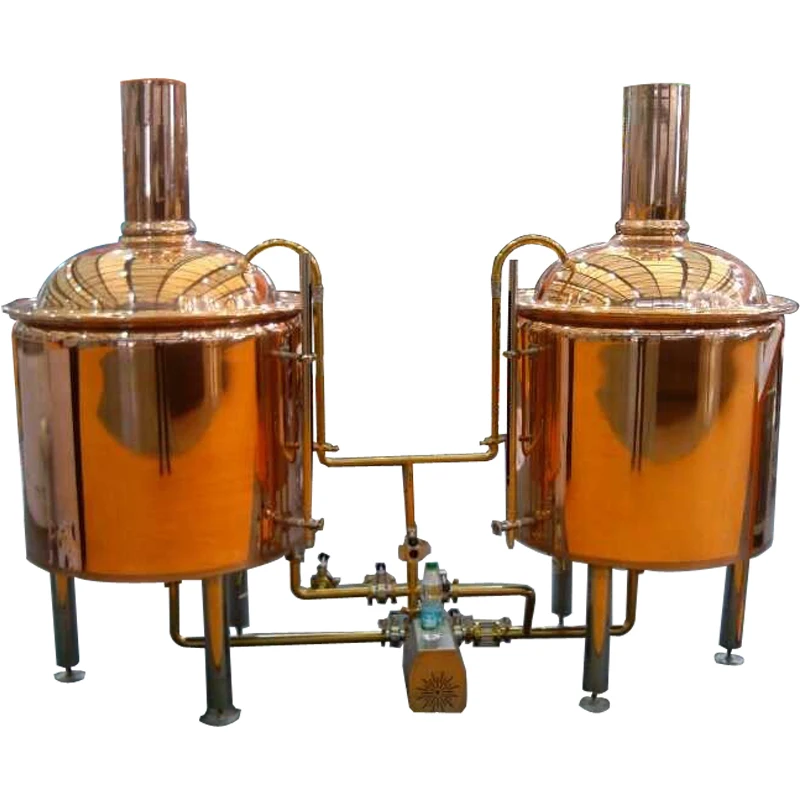

hot sale 200l copper beer brewery equipment microbrewery equipment

FOB Reference Price:Get Latest Price
US $28,000-30,800 / Sets | 1 Set/Sets 200l copper beer brewery equipment microbrewery equipment (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, Argon gas purge welding
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SDET
Model Number:
SDET-200l
Processing Types:
Alcohol
Voltage:
3phase/380(220V)
Power(W):
0-80KW
Dimension(L*W*H):
Based on volume
Weight:
1000KG-5000KG
Certification:
CE ISO
Name:
hot sale 200l copper beer brewery equipment microbrewery equipment
Tank Material:
SUS304/SUS316 /copper
Heating way:
electric /steam /direct fire heating
Tank thickness:
3mm for Inner-Jacket/2mm for External-Jacket
fermenter conical:
60 degree
External surface treatment:
cold-rolled plates grinded to SB
Washing system:
CIP cleaning, 360° spray washing
Insulation layer:
PU or rockwool
Cooling jacket:
Miller board or Ice water belt
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 Years for main product
Supply Ability
Supply Ability:
20 Set/Sets per Month 200l copper beer brewery equipment microbrewery equipment
Packaging & Delivery
Packaging Details
1. Packaging Details: by independent containers or by bulk carriers PVC film, or ply wooden case
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all equipments will be well fixed to the containers.
4. Delivery Detail: 30-35 days, depend on the condition.
Port
Qingdao port

hot sale 200l copper beer brewery equipment microbrewery equipment

Product Description
Why Choose Shendong draft brewery equipment?
With more than 10 years' experience in making and selling brewery equipment, beer and other beverage filling line, Shandong Shendong Equipment Technology Co., Ltd can provide the most professional brewing solutions for you.We will help you to make more profit.
Dedicated team of consulting Services & Professional team of technical engineers Complete quality control and management systems Industry leading manufacturing brewery equipment 1~5Years After-sales services for our goods.
microbrewery equipment to meet different capacities and all kinds of 200l copper brewery equipment can be offered (voltage, material, dimension, heating source and so on)
With CE & ISO9001:2000 Certification
draft beer production line Introduction
The 200l copper brewery equipment is a good choice for the barbecue or restaurant who brew the beer for the customer at scene.
Our 200l copper brewery equipment is semi-automatic and automatic PLC system. It is easy to operate. Try our best to save the investment cost for you. All our brewery equipment have passed the CE or ISO certificate. We have several years' brewery equipment manufacture experience. And according to your demand we can supply all kinds of brewery equipment and supply microbrewery equipment plants
If any questions and problems, please feel free to contact us and we will send you more detail information to you.
Below is specification of 200l copper brewery equipment:
microbrewery equipment detail
Daily output100L200L300L500L1000L2000L
unit typeSDET-100SDET-200SDET-300SDET-500SDET-1000SDET-2000
floorspace15square25square35square45square80square120square
power12KW15KW20KW35KW35/15KW65/15KW
Beer production period8-12 days8-12 days8-12 days8-12 days8-12 days8-12 days

200l copper brewery equipment technical detail

Mashing system

The brewhouse system could be included two-vessels brew house, three-vessels brew house and four-vessels brew house. Two-vessels brew house includes mash/lauter tun and kettle/whirlpool tank. Three-vessels includes mash tank, lauter tun and kettle/whirlpool tank. Four-vessels includes mash tank, lauter tun, boiling kettle and whirlpool tank. The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency.

Stainless steel or copper cladding is popular

Two stages or single stage heat exchanger for wort cooling

Completely stainless steel integrated work platform

Sanitary and efficiency wort pump

Fermentation System

Composed of fermenting tank, bbt and yeast tank, the fermentation process is controlled by PLC program, which can automatically accomplish the temperature control and exhaust.

Cooling way: Ice water belt or miller plate;

Cooling media: glycol water or alcohol water.

Material: Inner (SUS304)thickness: 3.0mm;

External-Jacket(SUS304) thickness: 1.5mm;

Top seal head, thickness: 3.0mm.

Insulation: Polyurethane-thickness: 80mm.

The inner surface polished to Ra0.6um.

Equipped with: Cone 60° resist compression design, Side manhole: 430*330mm.

With sampling valve, vent valve, safety valve, pressure gauge, solenoid valve and etc.

Fermentation tank pressure: Design pressure 0.3MPa; Working pressure 0.15Mpa.

Cleaning System: CIP washing unit: Comprehensive cleaning.

Foot bolt: Adjust the height of the equipment, easy to install

Cooling System

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigerators with fryonto supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials are included

CIP cleaning system

For brewery equipment, usually adopt CIP cleaning device including NaOH alkali liquor tank, hydrogen peroxide dolution tank adn sanitary grade pump.

Make a best suitable combination including NaOH alkali liquor tank,cleaning pump and valves on one movable car, that can operate flexable and simple, which can use forvarious types of small and middle brwery equipment cleaning, disinfected throughly and no dead corner.

Cycling and closed cleaning system, replaces the manual operation, and make cleaning effect easier to be aseptic condition.Same time, this system can be customized as manual, semi- automatic and fully automatic control according customers'different requirements.

Controlling system

We can provide PID semic automatic control system and PLC touch screen full automatic control system.

Optional brand: Siemens, Schneider, LG, etc.

Other Facilities
Beer dispensing columns and faucets for directly beer service
Keg filling and rinsing machine
Manually bottling machines for self consumption
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor

Our Other Product Maybe You Interested


If you are interested in our brewery equipment, click the photos as below, and you can send us the inquiry.


Packaging & Shipping

1. Packaging Details: by independent containers or by bulk carriers PVC film, or ply wooden case
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all brewery equipment will be well fixed to the containers.
4. Delivery Detail: 30-35 days, depend on the condition.



Certifications

Specialized in brewery equipment for years;
Exported to more than 50 countries and regions in the world;
Owning technical engineers to design specially for customers as per their actual sites;
Having long term cooperated and more high reliable forwarder;
Super quality and wholehearted service
CE ISO PED certification
High quality and moderate price
Professional technician team are available for designing you the brewery equipment according to your requirements.



Trade Shows

Each year we have many clients come to visit out workshop and our brewery equipment. Everyone is satisfied with our products and our beer.

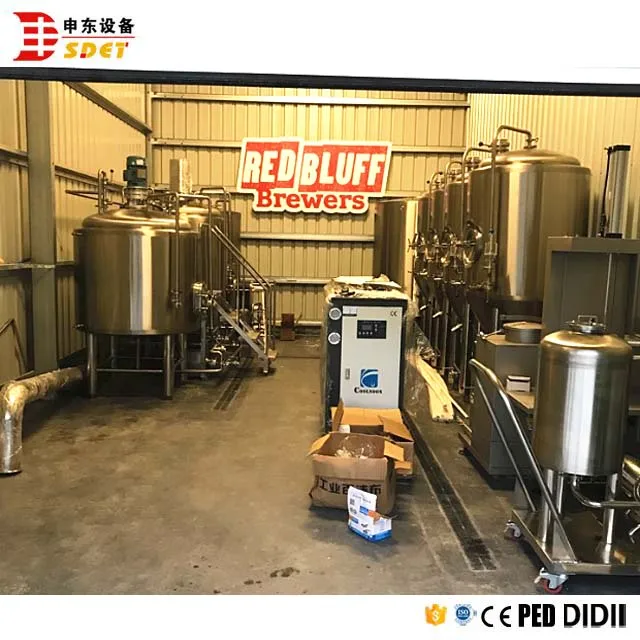

Each year we installed many brewery equipment for clients all over the world. You can go to visit them for comments and inspect the quality

FAQ

1. Do you offer turnkey/complete brewery equipment?
    Yes, we offer all equipments for a complete beer brewery. You need not to buy any other equipments. Only prepare water, malts, hops and yeast to make beer.

2. What stainless steel you use to manufacture brewery equipment?
    We all use SUS304/SUS316 stainless steel from TISCO, which is national company, quality is excellent.

3. What certificate do you have?
    We have ISO9001, CE and PED certificate. SGS and other certificate can be made based on client’s requirement.

4. What is the welding and polishing quality?
    All welding is TIG (argon arc welding), double side welding for all tanks.
    All inner polishing is mirror polish. Looks like mirror.

5. What spare parts you use?
    All parts is famous brand and excellent quality, such as, motor is Siemens, VFD is danfoss, chiller is coolsoon, all pumps have CE certificate, all electric parts have CE certificate.

6. How to install the draft brewery equipment?
    We can send engineer to install it, you can also install it by yourself if need.

7. How long is your warranty for brewery equipment?
    5 years. We will offer free service and free spare parts if any problems happens naturally within warranty.
