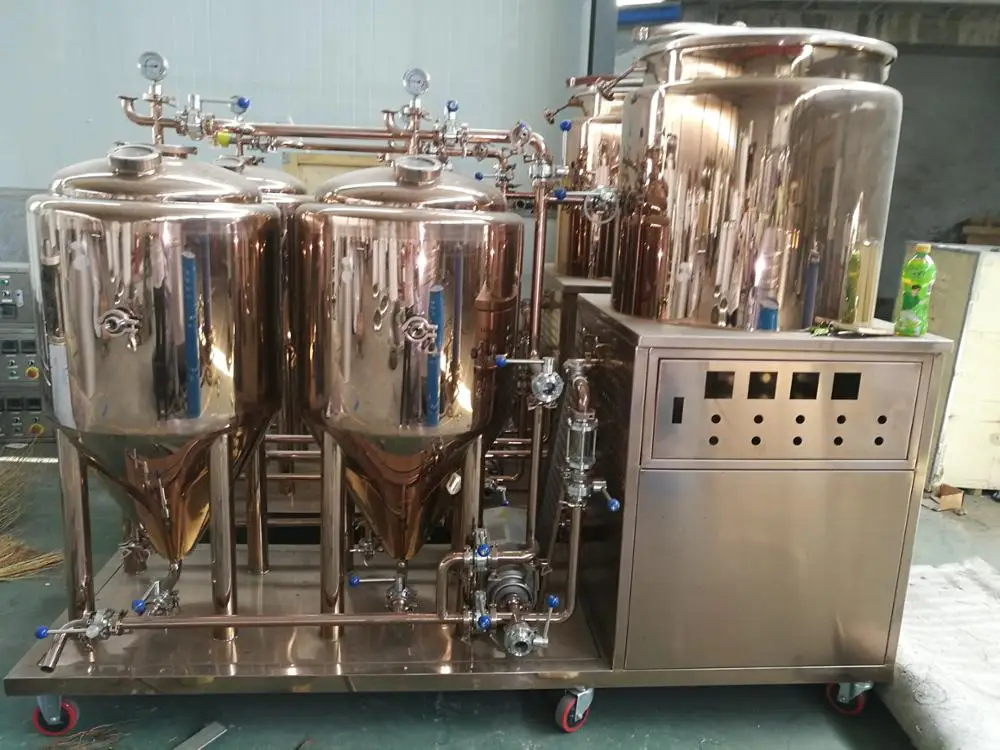

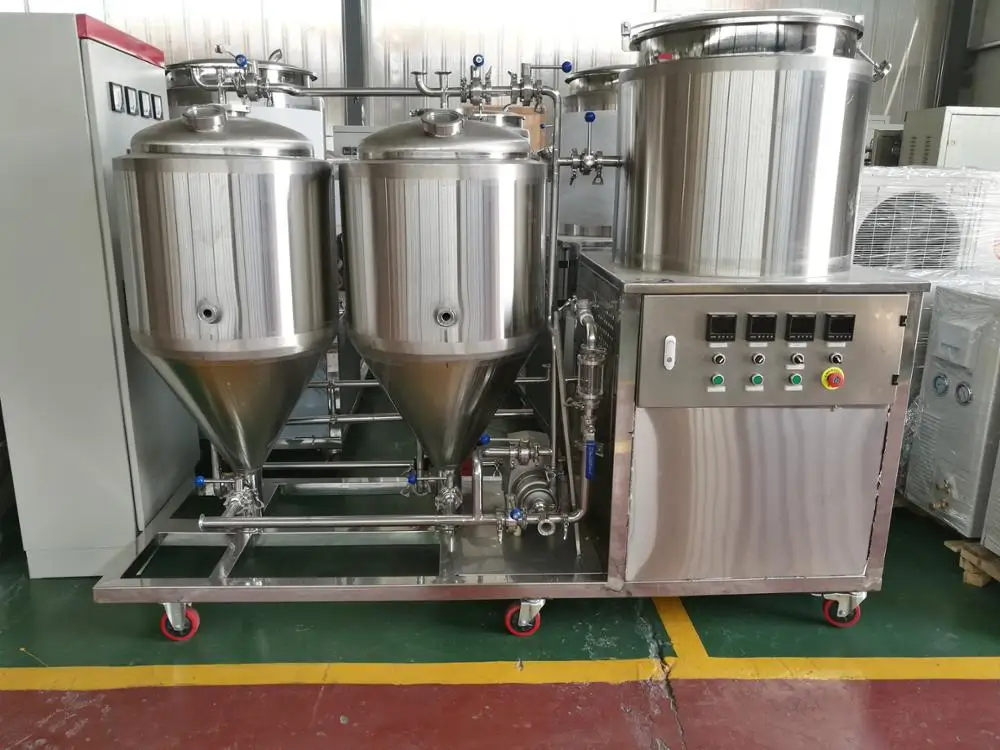

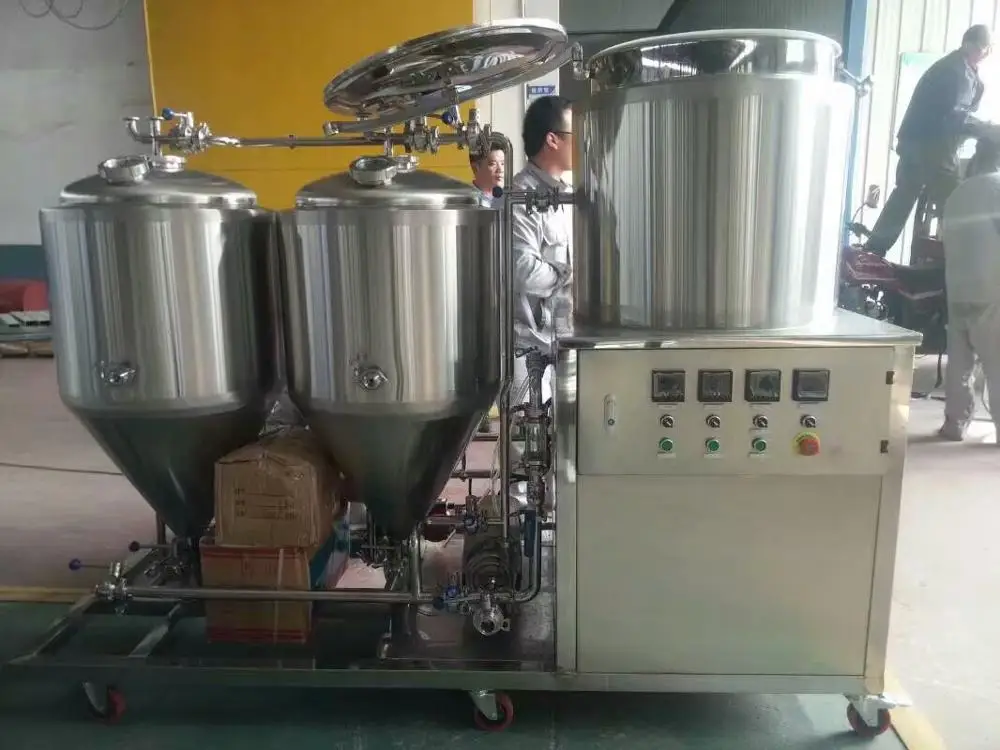

min order small home 50 litre beer brewing equipment

FOB Reference Price:Get Latest Price
$6,000.00 - $7,000.00 / Sets | 1 Set/Sets beer brewing equipment home 50 litre (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, Argon gas purge welding
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SDET
Model Number:
SDET-50l
Processing Types:
Alcohol
Voltage:
3phase/380(220V)
Power(W):
0-80KW
Dimension(L*W*H):
Volume
Weight:
200KG-1000KG
Certification:
CE ISO
Product Name:
min order small home 50 litre beer brewing equipment
volume:
50l
Heating method:
Steam/electric heating
Tank thickness:
3mm for Inner-Jacket/2mm for External-Jacket
Material:
Stainless Steel 304/copper
Fermenter cone:
60-75°
Insulation layer:
PU or rockwool
Plate surface:
Mirror, wire drawing, 2B
Cooling jacket:
Miller board or Ice water belt
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 years for home beer brewing equipment
Supply Ability
Supply Ability:
25 Set/Sets per Week beer brewing equipment home 50 litre
Packaging & Delivery
Packaging Details
Delivery Detail: Shipped in 30 days after payment
Packaging Details:by independent containers or by bulk carriers PVC film, or ply wooden case for home beer brewing equipment
Port
Qingdao port
Lead Time :
45 days after the order

min order small home 50 litre beer brewing equipment

Product Description
50 litre beer brewing equipment advantages:
1. Stainless steel material to guarantee the quality of beer, and high-grade appearance.
2. With the smallest volume to complete the entire brewing process.
3. Overall and mobility make the whole set of home beer brewing equipment clean and generous, has exhibition.
4. Use of fully enclosed brewing methods, implementation of aseptic operation, guarantee the success rate of wine.
5. Breakthrough the bottleneck of original home brew temperature pressure is not controlled, so that the finished wine more delicious.
6. Automatic control of the temperature and pressure in the brewing process, manual operation error loss.
7. The machine can produce various flavors of beer, with the equipment will have instructions and making method.
8. In addition, we can  modify the device according to customer's specific conditions,in order to build a more suitable environment for home brewing.
Which system is contained in home beer brewing equipment?
Part 1 Malt Miller
Special design of feed hopper, it is can contain more raw material than other machines.
Use patentedroller, special  tooth structure of roll can ensure the final products have little or no powder. So it is easier for mash system.
Use patented device mada of rare earth alloy. It is self-lubricanting, no need to use lubricant.
Part 2 Brewhouse
Mashing system is composed of mash tun, lauter tank, kettle, whirlpool, including Lauter pot (inside), the wort step heating is controlled by PID and completed semi-automatically.

Material: stainless steel 304/316 or red copper

Inner/ External jacket: 2.5mm/2.0mm

Heating way: steam heating, electric heating or direct fire heating.
Part 3 Fermenter
The tradtional design of the fermenter’s cylinder and cone is double-jacket, the seal head is single-jacket, based on the original design, we have developed the energy-saving equipment with double jacket seal head, favored by customers.
Cooling way: ice water belt or dimple jacket
Fermenter cone: 60-75°
Design pressure is 0.3Mpa; working pressure is 0.15Mpa
With dry hops port on the top of tank.
Fermenter with racking arm.

Part 4 Cooling system
Includes: glycol tank, cooling unit, pump and etc. used for cooling wort, fermenters and bright beer tank.
Controll way: automatic
Cooling structure: ice water belt and dimple jacket

Part 5 Controller

Control system is composed of Control cabinet or PLC or PID

All the motors/pumps turn on/turn off will be controlled on the cabinet.

The temperature of brewhouse will be show on the cabinet.

All the fermenters/BBTs/Ice water tank’s temperature will be controlled on the cabinet.



Home Brewing Equipment Accessories

home brewing equipment Accessories, including Lauter pot (inside), Pipeline & valve, Sight Gauge Glass, Pressure Gauge and so on.

Our design





Packaging & Shipping

1. Package: inner with stretching membrane and PE paper, outer with frame steel, or customized
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all beer brewing equipment home 50 litre will be well fixed to the containers.
4. By sea/railway/road
5.Customers' requirements of the packages are available, Please tell in advance.
