60L micro home brewery beer brewing equipment for testing and DIY

FOB Reference Price:Get Latest Price
$8,000.00 - $8,800.00 / Sets | 1 Set/Sets micro beer brewing equipment (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SDET
Model Number:
SDET-60L
Processing Types:
Alcohol
Voltage:
3phase/380(220V)
Power(W):
0-80KW
Dimension(L*W*H):
User Requirements
Weight:
1-3T
Certification:
CE ISO
Product Name:
60L micro home brewery beer brewing equipment for testing and DIY
Material:
Stainless Steel 304 food grade/copper
Tank thickness:
2.5mm for Inner-Jacket/2mm for External-Jacket
Heating method:
Steam/electric heating/direct fire heating
Fermenter cone:
60°
Cooling jacket:
Miller board or Ice water belt
Insulation layer:
PU or rockwool
Insulation thickness:
50mm/80mm/100mm
Control system:
Temperature, Pressure auto control
Working pressure:
1,5 bar in cylindrical-part (filled-up tank, at 20°C)
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 years for beer brewing equipment home
Supply Ability
Supply Ability:
30 Set/Sets per Month beer brewing equipment home
Packaging & Delivery
Packaging Details
1. Sound production management and Reliable sea forwarder for many years guarantee the timely delivery.
2. Experienced package guarantee the quality of beer brewing equipment home and ensure customers' satisfying.
3. Packing details: packing with steel stainless and wood cases, standard export package
4. Delivery details: delivery time within 45 days from Qingdao
Port
Qingdao port
Lead Time :
35 days after the deposit
Video Description

60L micro home brewery beer brewing equipment for testing and DIY

Product Description
Why choose our 60L micro home beer brewing equipment?
- The 60L micro beer brewing equipment home have one vessel, two vessel, you can choose it.
-The 60L micro beer brewing equipment uses for home, laboratory, school.
-The 60L micro beer brewing equipment can be used test and create your beer recipe.
-The 60L micro beer brewing equipment home lauter tank have sieve plate, laser cutting T-wires, plate gap:0.7- 0.8mm; Material is SUS 304
Which system is contained in 60L micro beer brewing equipment?

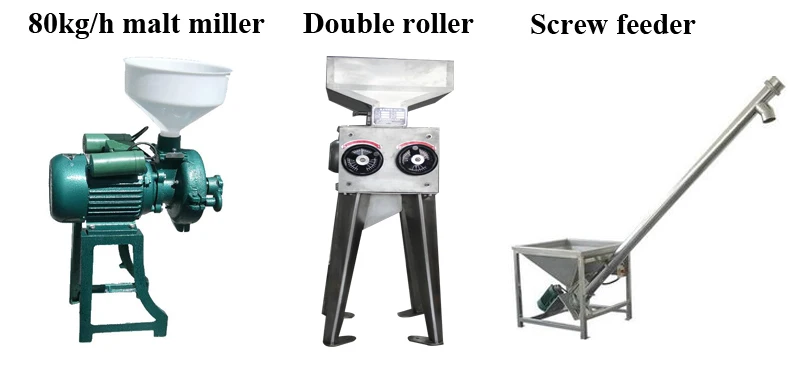

Part 1 Malt Miller
Special design of feed hopper, it is can contain more raw material than other machines.
Use patentedroller, special  tooth structure of roll can ensure the final products have little or no powder. So it is easier for mash system.
Use patented device mada of rare earth alloy. It is self-lubricanting, no need to use lubricant.

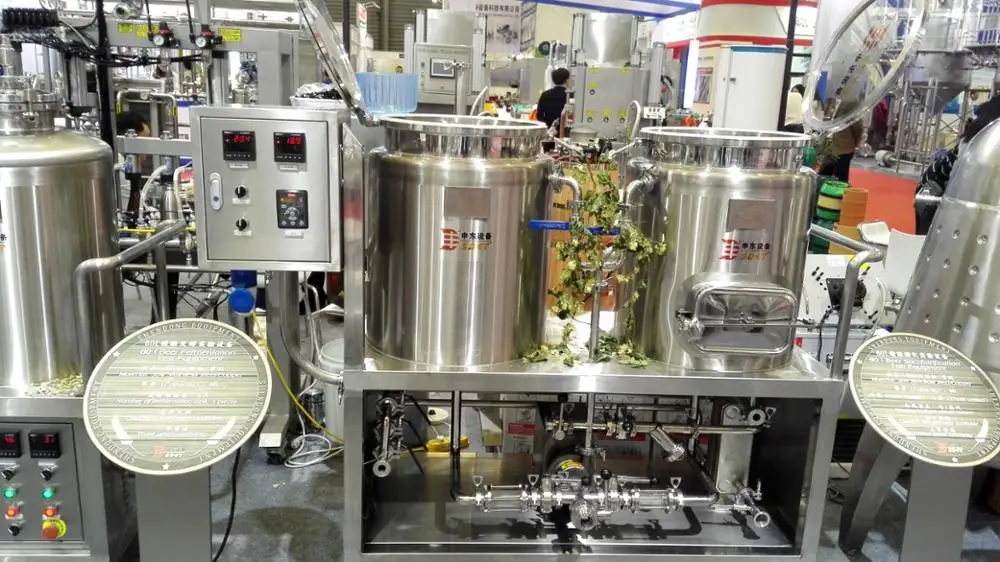

Part 2 Mashing System
Mashing system is composed of mash tun/lauter tank, kettle/whirlpool, the wort step heating is controlled by PID and completed semi-automatically. Controller is in mashing system lonely.

Material: stainless steel 304/316 or Gold-plating

Inner/ External jacket: 2.5mm/2.0mm

Heating way: steam heating by electric steam boiler, electric heating.
Easy pipe design and whole configuration, making you easy to operate and brew good taste of beer.

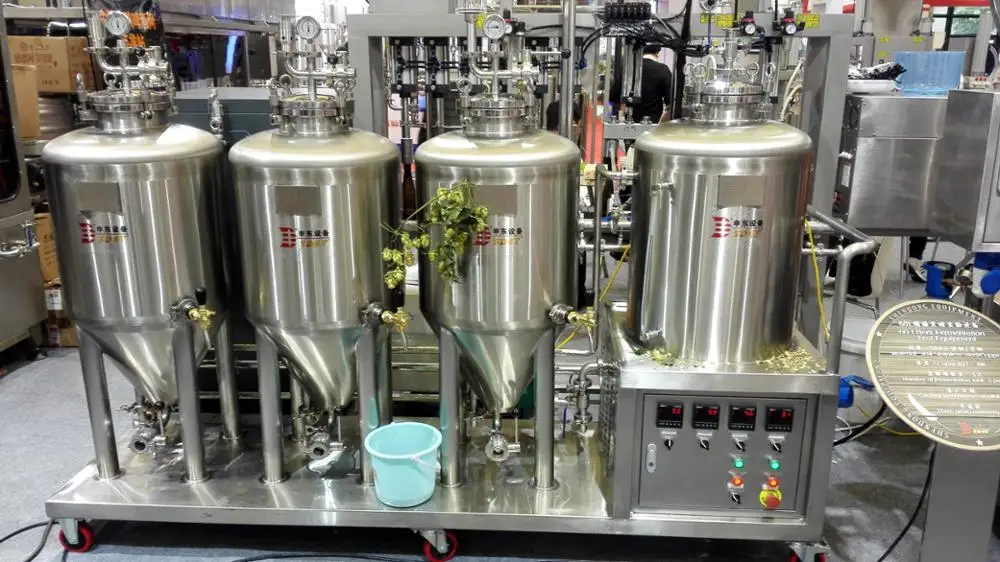

Part 3 Fermenter system
The fermenter system contains 60L fermenter, 60L ice water tank, small chiller and controller. they is connected together. Not only you operate it easily, but also it only cover small floor.
Cooling way: ice water belt or dimple jacket
Fermenter cone: 60°
Design pressure is 0.3Mpa; working pressure is 0.15Mpa
Controll way: automatic
Cooling structure: ice water belt and dimple jacket
Sample valve with beer tower head.

All the motors/pumps turn on/turn off will be controlled on the cabinet.

The temperature of brewhouse will be show on the cabinet.

All the fermenters/BBTs/Ice water tank’s temperature will be controlled on the cabinet.



Part 4 Beer Brewing Equipment Home Accessories

home brewing equipment Accessories, including filter plate, Pipeline & valve, Sight Gauge Glass, Pressure Gauge and so on.

Part 5 Our design

What does our beer brewing equipment also have?



Company Information

SDET Beer Brewing Equipment Company

Shandong Shendong Equipment Technology Co., Ltd. is a professional beer brewing equipment and brewing ISP, including the variety of large and small, micro beer brewing equipment, factory beer brewing equipment, hotel beer brewing equipment, bar and teaching laboratories beer brewing equipment, as well as beer the attachment of the device, the external auxiliary equipment, control equipment, beer brewing, the main and auxiliary supply of raw materials, brewing techniques, training and other services.

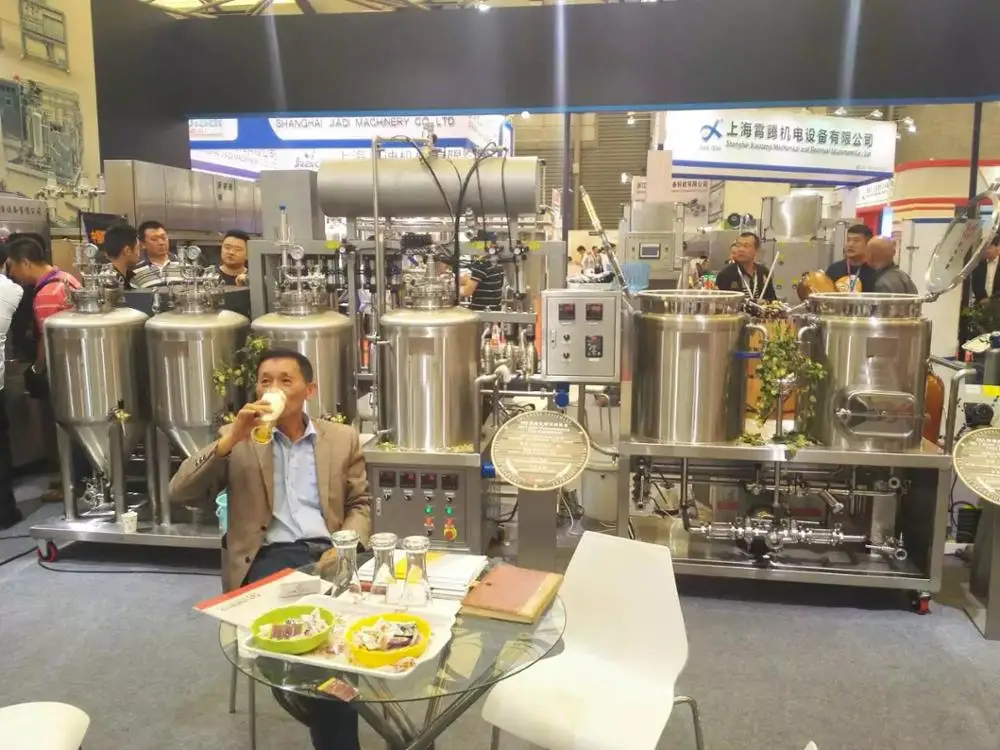

SDET Company Beer Brewing Equipment Exhibition
Shandong Shendong Equipment Technology Co., Ltd attends many micro beer brewing equipment exhibitions, in April of 2016, we attended the professional beer brewing equipment fair that is Craft Brewer Conference (CBC) in Philadelphia of USA; we attend the Shanghai International Brew & Beverage Manufacturing Technology and Equipment Exhibition (CBBE) in October of 2016; we attend the exhibition of China Brew China Beverage in Beijing during 2016 year. We will attend the beer brewing equipment fair of International Beverage and beer brewing equipment technological exhibitions in Munich of Germany during the September of 2017. This is one of the biggest exhibition of beer brewing equipment in the world. We will show our craft brewery draft beer 1000l beer brewing equipment in this meaningful exhibition. Meantime, we will learn from the advanced Germany technology to do our micro beer brewing equipment better and better, search some high good supplier of pumps, motor and other auxiliary equipment.

SDET Company Beer Brewing Equipment Certification

Shandong Shendong Equipment Technology Co., Ltd. is one of professional beer brewing equipment manufacturer in China with years of experience in exporting and producing. All our products had been certified by CE/ISO/PED, you can spend very little money to achieve your brewing dream.

Our customer

All equipments are in excellent condition. Beer tastes very well. All beer is sold out everyday although we keep working 7*24 hours.Now we are planning for second beer brewery .

                                                                            ----------Johan Burger/South Africa



Thanks to Shendong company giving so beautiful equipment to us. Thanks to all the stuffs' assistance. Thanks to the engineer Mr liu coming to install the brewing system. We have enjoyable party before Mr Liu leave.

                                                                 ------------Andre Hoogendoorn/Netherland



The quality is very good, we plan to sell Shendong equipments as distributor.

                                                                                 --------------Pedro Sousa/Portugal



We bought 300l beer brewery 4 years ago, its performance is still reliable. Delicious beer brings more and more friends to my pub.

                                                                             -----------Musa Agroindustrial/Brazil



We placed order after visiting Shendong's factory. It is trustworthy partner. Now complete system is on the way. We are looking forward to it. Believe we will have more cooperation

                                                                                             -------Phillip o'shea/Austalia



FAQ

1. Do you offer turnkey/complete micro beer brewing equipment?

    Yes, we offer all equipments for a complete micro beer brewing equipment. You need not to buy any other equipment. Only prepare water, malts, hops and yeast to make beer.



2. What stainless steel you use to manufacture micro beer brewing equipment ?
    We all use SUS304/SUS316 stainless steel from TISCO, which is national company, quality is excellent.



3. What certificate do you have?
    We have ISO9001, CE and PED certificate. SGS and other certificate can be made based on client’s requirement.



4. What is the welding and polishing quality?
    All welding is TIG (argon arc welding), double side welding for all tanks.
    All inner polishing is mirror polish. Looks like mirror.



5. What spare parts you use?
    All parts is famous brand and excellent quality, such as, motor is Siemens, VFD is danfoss, chiller is coolsoon, all pumps have CE certificate, all electric parts have CE certificate.



6. How to install the micro beer brewing equipment?
    We can send engineer to install it, you can also install it by yourself if need.



7. How long is your warranty for micro beer brewing equipment?
    5 years. We will offer free service and free spare parts if any problems happens naturally within warranty.
