2017 new design stainless steel 304 micro beer equipment

FOB Reference Price:Get Latest Price
$3,000.00 - $45,600.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SDET
Model Number:
Custom-design
Processing Types:
Alcohol
Voltage:
3phase/380(220
Power(W):
0-80KW
Dimension(L*W*H):
Capacity
Weight:
200KG-2000KG
Certification:
CE ISO PED
Product Name:
Stainless steel 304 micro beer equipment
Material:
Stainless Steel 304/316
Capacity:
100-5000L
Application:
Brewpub bar hotel brewery
Heating method:
Electricity Steam Fire
Heating way:
Steam Heating Beer Brewing Equipment
Control system:
Semi-automatic
Keywords:
Stainless steel 304 micro beer equipment
Function:
Brewing Beer Brewing Equipment
Name:
Stainless steel 304 micro beer equipment
Warranty:
5 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Trade Term: EXW, FOB, CIF, CFR
Supplying Ability: 35 working days after deposit
Packaging:
1. LCL/FCL ( 20GP/40GP/40HQ )
2. Packed with plastic film in fumigation free wooden case or fixed with iron frame
3. Up to export standard, Suitable for delivery.
4. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
5. Customers' requirements of the packages are available, Please tell us in advance.
Port
Qingdao Port
Lead Time :
35 days after depoist
Brewery System

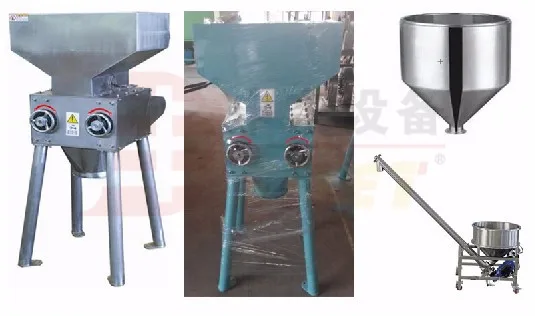

Malt milling system
No
Item
Introduction
Remark
01
Grain miller
Production ability: 200/300/500/1000/1200KG/H;
Material: SUS304 or Carbon steel
With Double rollers, the distance can be adjustment;
New design, reduce malt residue automatically
With explosion-proof motors;

Necessary
02
Auger

Used for transporting the grains from miller to hopper;
Material: SUS304
Economize on manpower for bigger brewery systems;

Optional
03
Hopper
Placed on the top of mash tun, stainless steel 304, used for store the grains.
0.6m3, 0.8m3, 1.0m3, 1.2m3, 1.2m3,…….

Optional

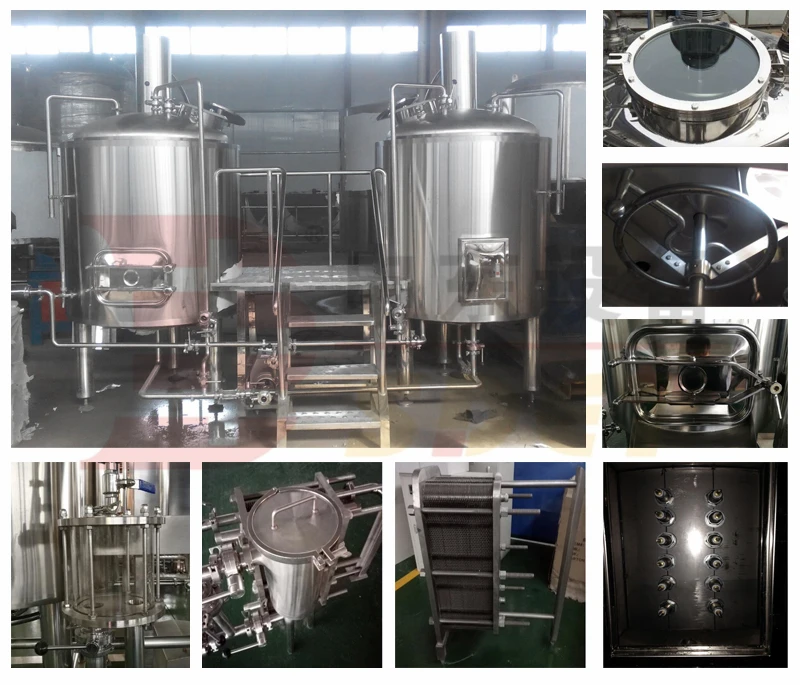

Mashing system
No
Item
Introduction
01
Configuration
2 vessels: Mash/lauter tank, Kettle/whirlpool tank;
3 vessels: Lauter tank+whirlpool, Kettle;
Or Mash tun, Lauter tank, Kettle/whirlpool tank;
4 vessels: Mash tun, lauter tank, kettle, whirlpool tank;





02




Heating method
Electric heating
via heating elements;

Lower cost; easy operate; Wort will burn easily;
Steam heating via
electric/natural gas/fuel
steam generator;

Heat evenly and stable; it’s good for the beer taste; cost more to buy extra steam boiler.
Direct fire heating
via gas burner

It is difficult to control the temperature; unsafe, easy to scorch the wort.
03
Control method
PID controller: show brewhouse temperature, control all motors & pumps;
PLC touch screen: Step heating is automatically, all motors/pumps operated on the panel;
Remote control by computer or mobile;

04
Motors/Pumps
Anti-explosion motors
With speed controller

05
Manhole
Round stainless steel manhole with sight glass
06
False bottom
(lauter tank)

Laser cutting T-wire false bottom, stronger enough and help you get clear wort.

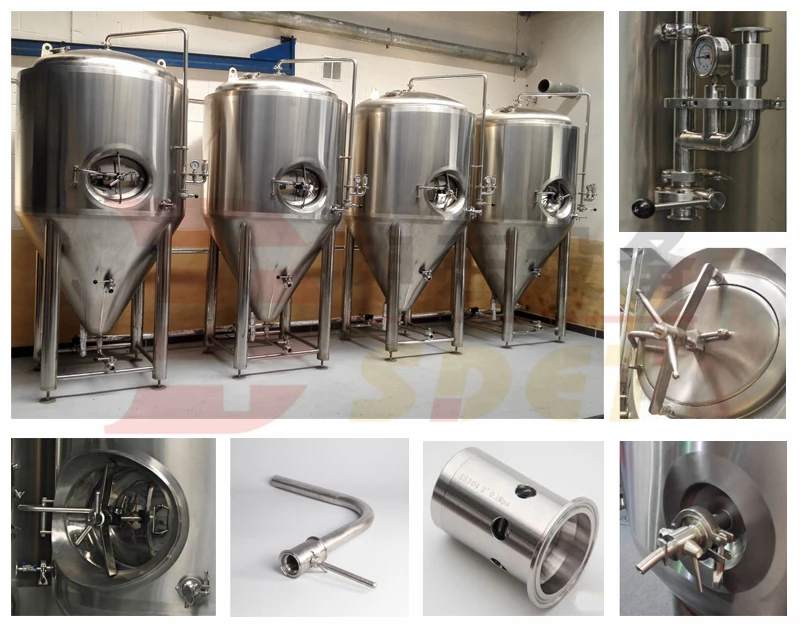

Fermentation system
No
Iterm
Introduction
01
Volume
100L-100000L or even bigger
02
Material
Stainless steel 304/316/316L
03
Insulation
Polyurethane, TH: 80-100mm
04
Glycol jacket
Dimple jacket on the cone and side
05
Head
Double or single dish head on the top
06
Accessories
Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on.

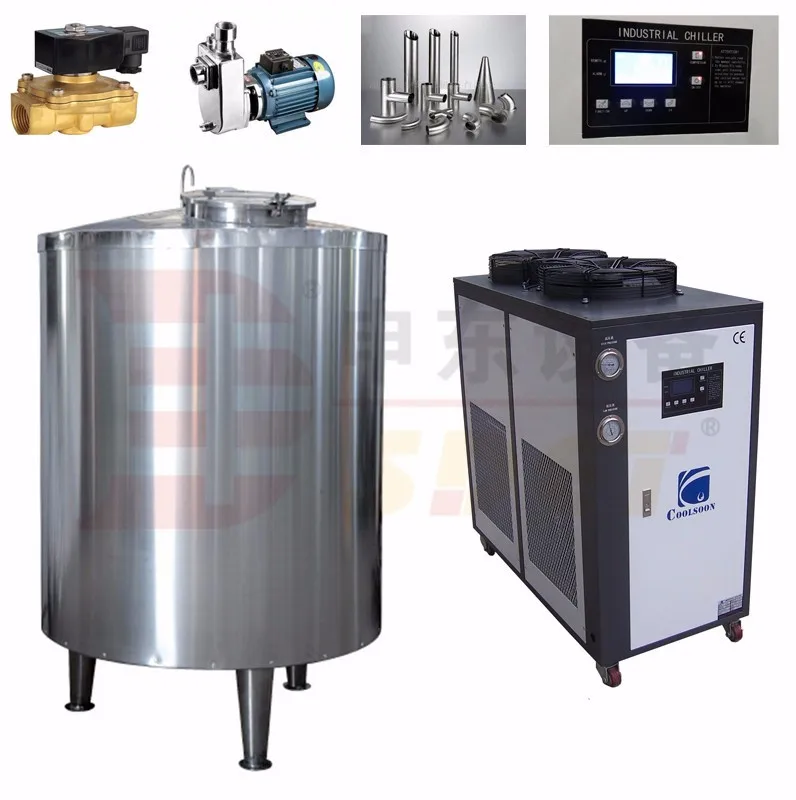

Glycol cooling system
No
Item
Introduction
01
Glycol water tank
The capacity is the three times of brewhouse

02

Chiller
According to glycol water tank's capacity
World famous brand--Australia COOLSOON, the quality is highly excellent, cooling efficient is the best. If there have something wrong in the future, it is easy to find spare part.
03
Function
Glycol water tank and Chiller will work rogether, to keep cooling wort in the plate heat exchanger.

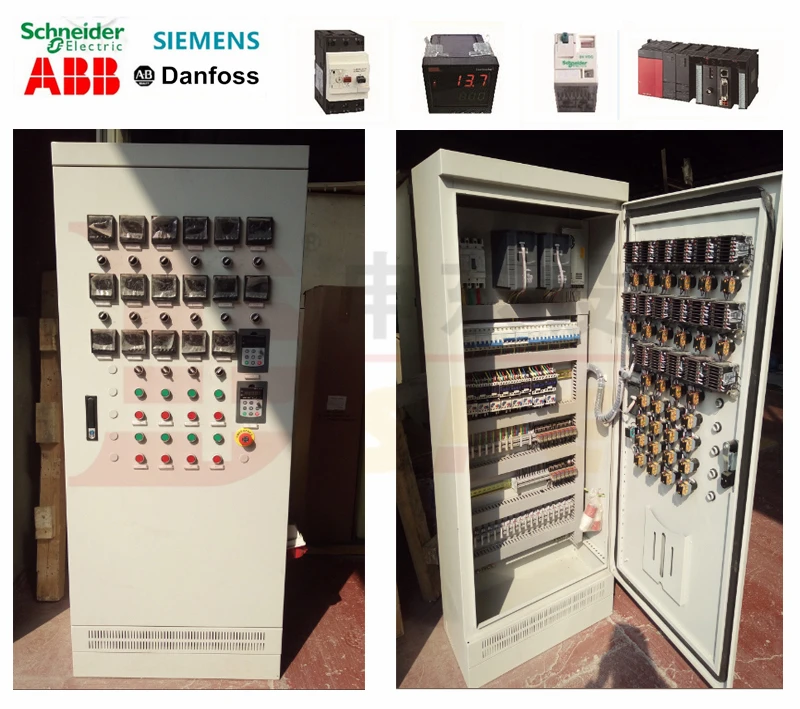

Controlling system
No
Item
Introduction
01
PID semi-automatic controller
Material
Stainless steel or Spraying plastics;
Function
Show and control all the tank's temperature, motors and pumps show on/off.
02
Electric parts
World famous with CE Certificated
03

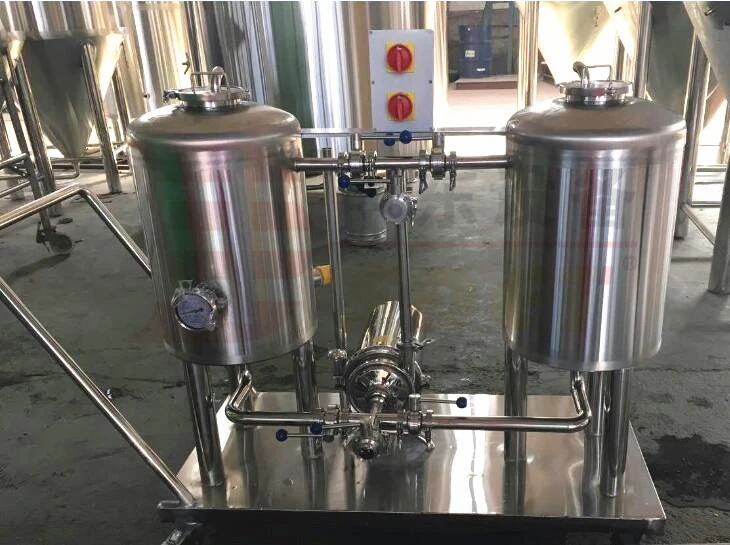

Cleaning system
No
Item
Introduction
01
Capacity
50L-500L........
02
Function
Cleaning all the tanks when it finishing brewing
03
Structure
Alkali/disinfectant tank/pump.
04
Material
Stainless steel 304/316/316L
Processing Details

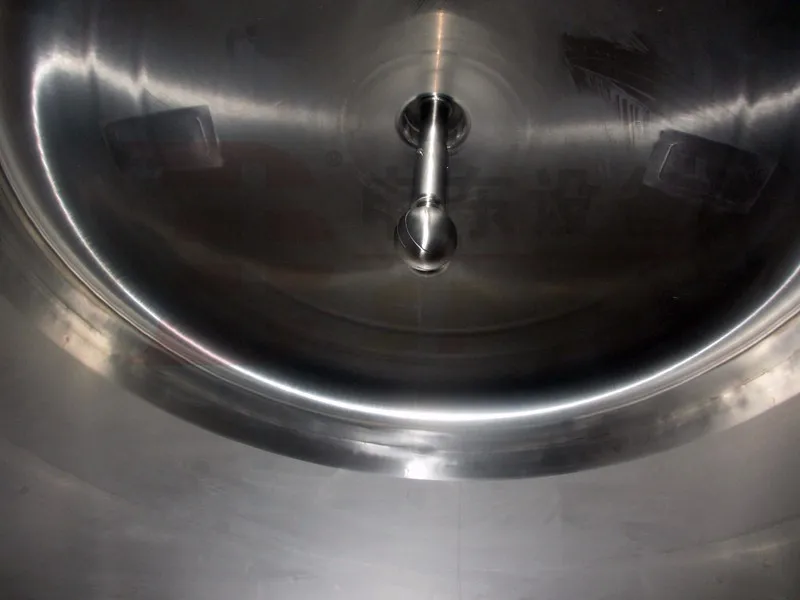

Mirror Polishing

1. Inside Polishing: Overall polishing to 0.2-0.4μm without dead corner .
2. Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
3. Purpose: The tank itself has high precision and small details of the tanks have to be observed by a telescope.
4. Function: To make tanks become tidy and smooth, beautiful and durable.

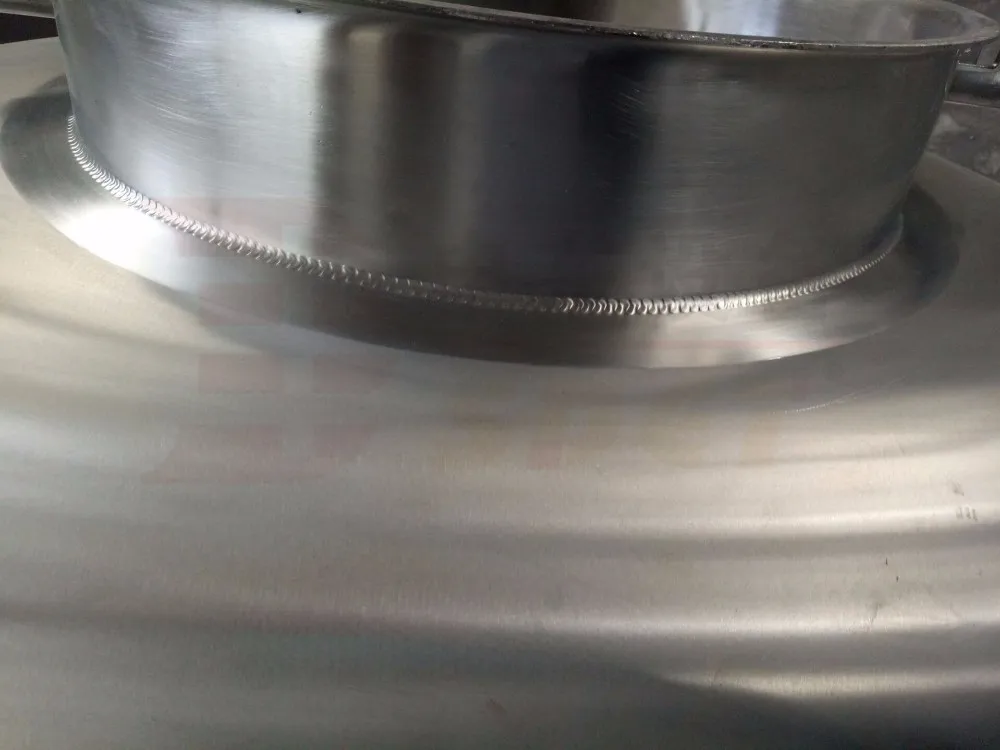

100% TIG Welding

1. All welding is TIG welding.
2. All welding is double side welding.
3. Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.
4. Function: Make tanks become durable and strong.

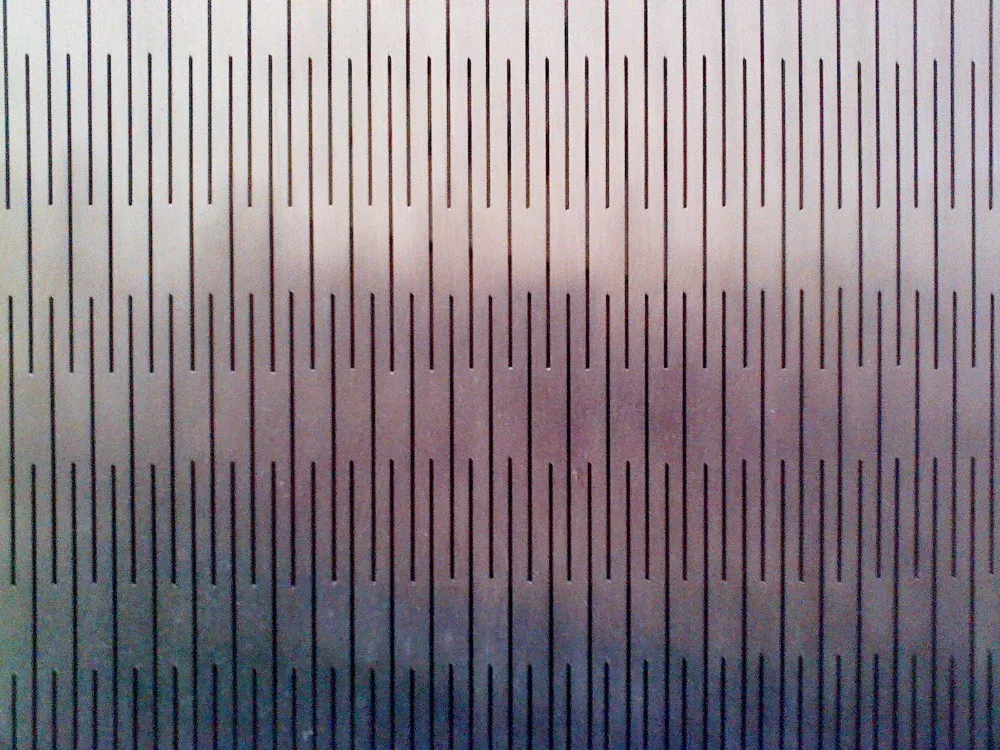

Plate bottom/Filter plate

1. Equipped in Mash/Lauter tank, use for stirring and filtration.

2. Laser cutting T-wires, Plate gap: 0.8mm
3. This filter plate is made on a complete stainless by CNC lathe, it is strong, filter fast and leak no anty grist.
4. Function: Use for Separating wort and impurities.

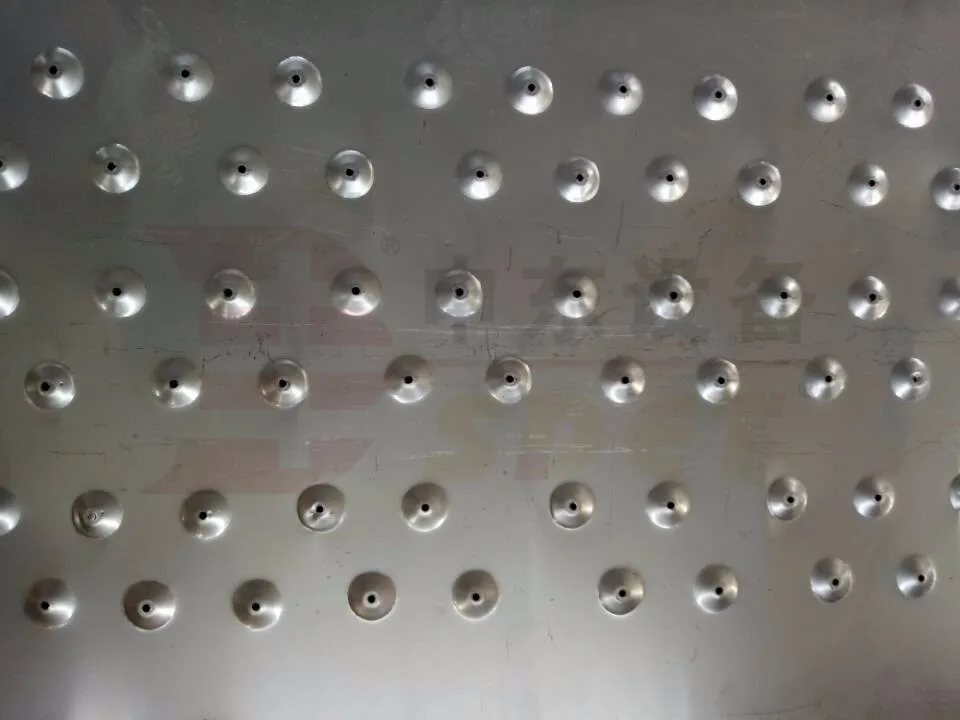

Dimple Plate/Miller Plate

1. Equipped in hot water tank, use for heating water.

2. Equipped in brewhouse, use for heating wort.
3. Equipped in fermentation tank, and bright beer tank, use for cooling wort in the fermenting period.
4. Equipped in glycol water tank, use for cooling water.
5. It will around the tank both cone, middle, and top.


After-Service

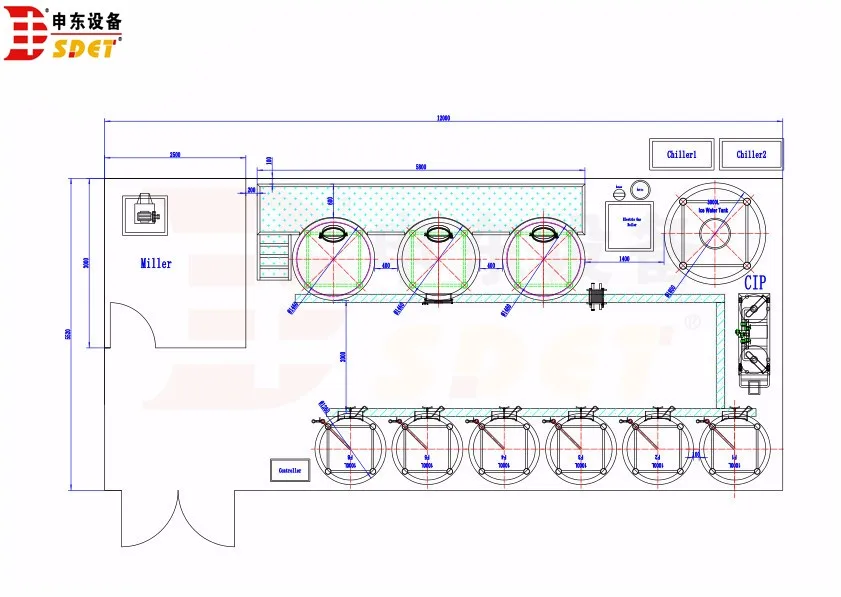

Layout is available

1. Give us your workshop/building floor plan, or the size (length, width, height).
2. Our engineer will device a layout for you based on your floor plan and your requirement.
3. Finally, we will send you to confirm, and if it cannot satisfy your need, we will revise it.

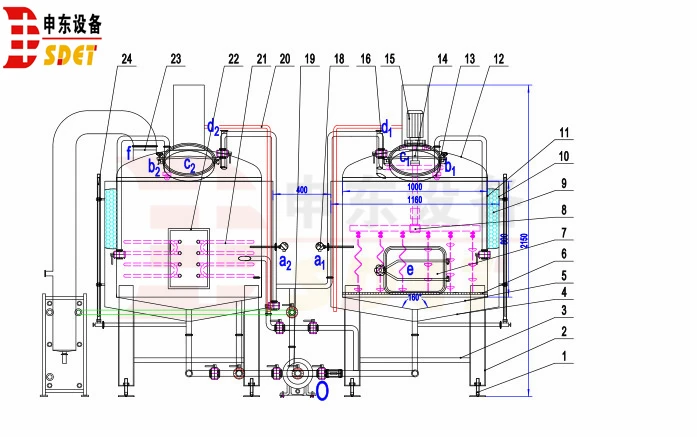

Drawing is available

1. According to our equipment design, and layout.
2. And our engineer will design a drawing (all the tanks) for you.
3. Finally, we will send you to confirm, and if it is no problem, we will send it to our factory to make a produce right away.

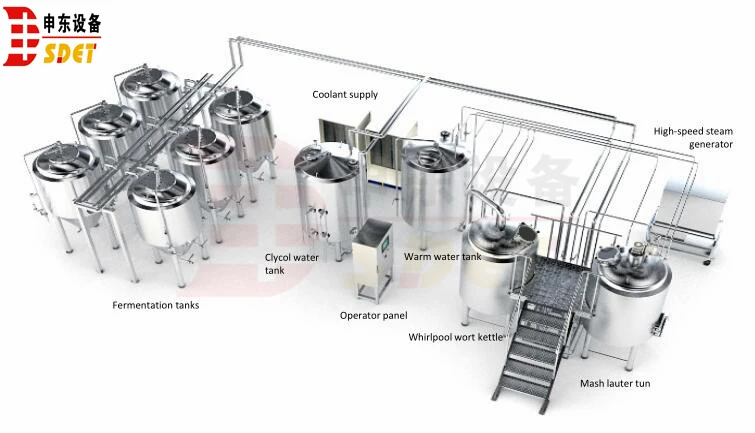

3D effective sketch is available

1. Based on layout, drawing, and building floor plan.
2. Our technician will design a 3D effective sketch for you.
3. So that you will have a clear, bright thought about your plan.

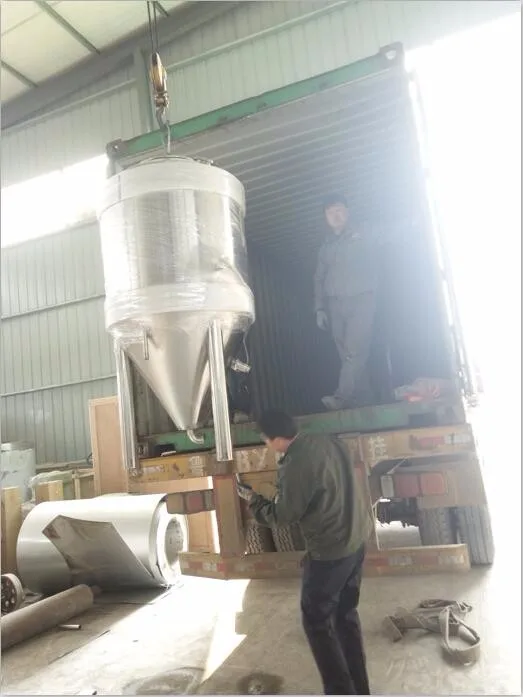

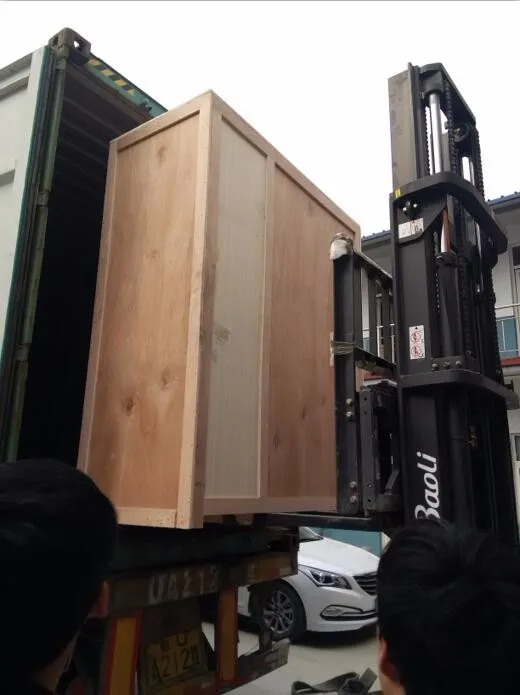

Packaging&Shipping

Trade Term: EXW, FOB, CIF, CFR
Supplying Ability: 35 working days after deposit

Packaging:

1. LCL/FCL ( 20GP/40GP/40HQ)
2. Packed with plastic film in fumigation free wooden case or fixed with iron frame
3. Up to export standard, Suitable for delivery.
4. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.

Company Information

Shandong Shendong Equipment Technology Co., Ltd is one of the leading manufacturers of beer brewing equipment, beer packaging machine, stainless steel vessels in China. We have been producing beer brewery equipment for many years. We can supply you a complete system from miller-mash system-fermenting-cooling-CIP cleaning to controlling and so on. Beer brewing equipment includes brewhouse equipment, fermentation equipment, yeast propagation equipment and cooling equipment, etc. Beer packaging line includes beer bottling line, beer canning line and beer kegs washer and fillers.

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source.
